I. Présentation du produit

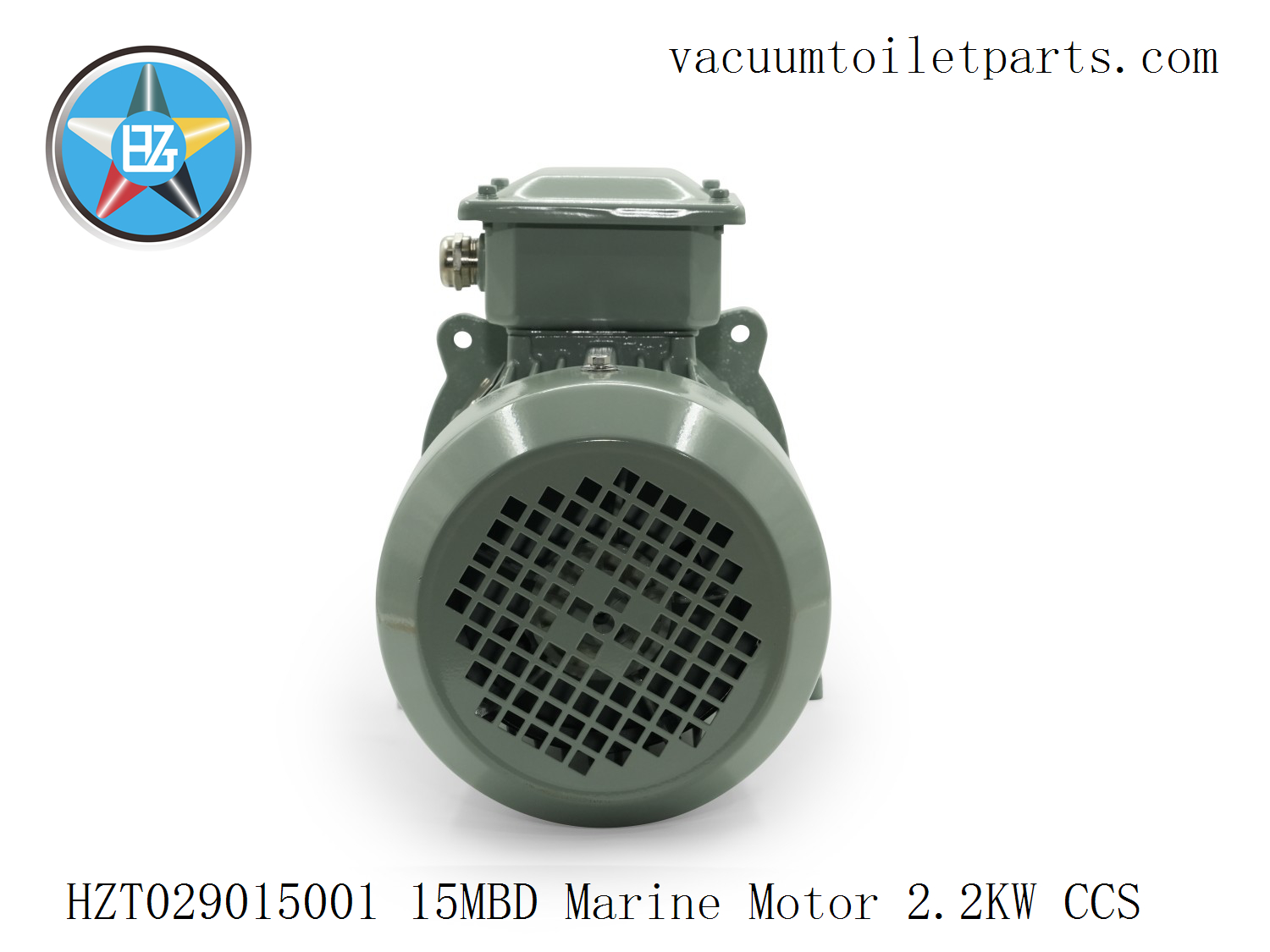

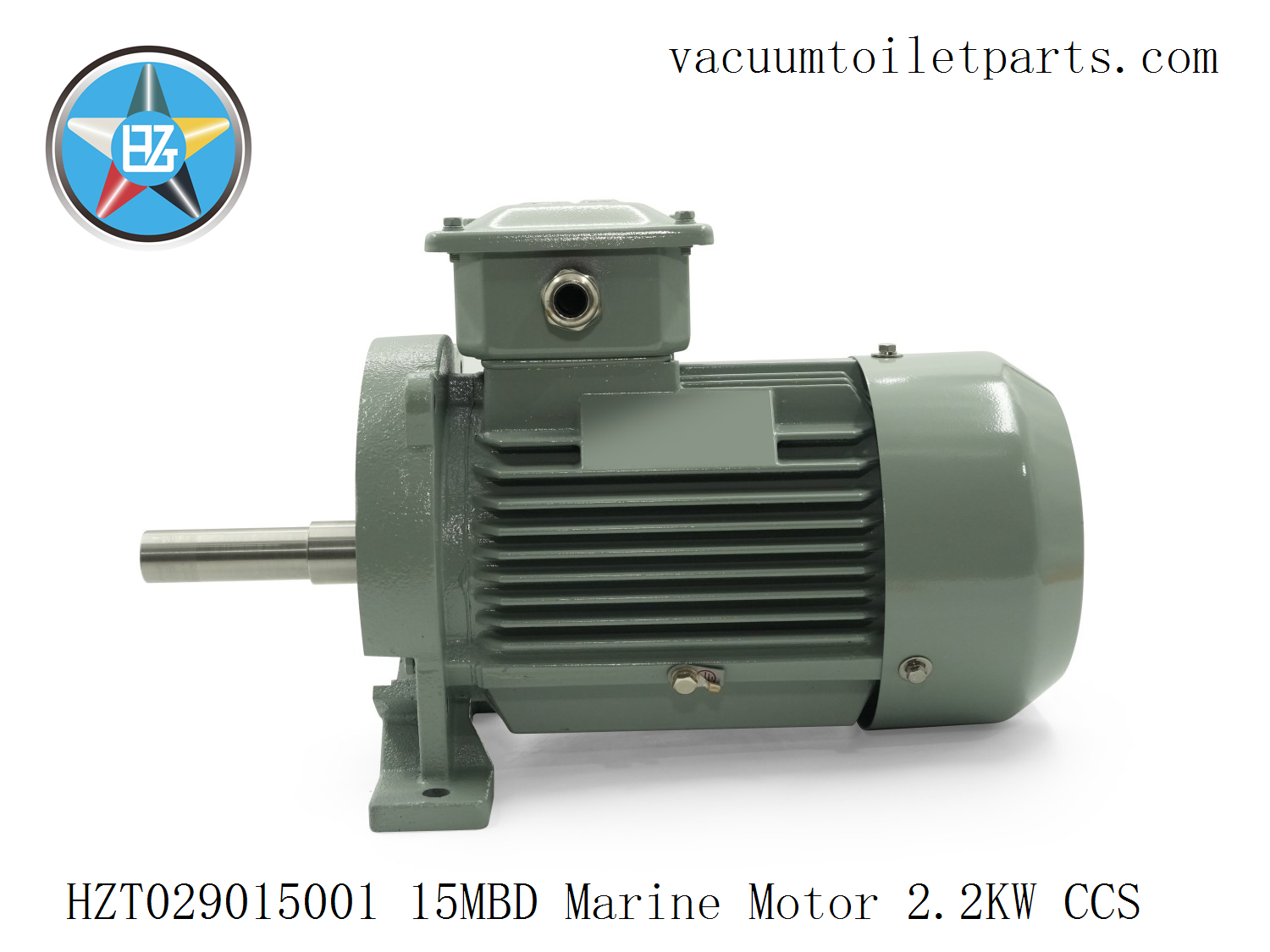

The HZT029015001 marine motor is a high-efficiency drive unit designed specifically for the HZT029015001 15MBD series marine vacuum sewage pump.
This motor features a dual-frequency, dual-voltage design (50Hz/60Hz, Y380/Δ220 // Y440/Δ255V), meeting the common requirements of various ship electrical grid standards (European, Asian, and American).
The entire motor is CCS certified, with an IP55 enclosure rating. It utilizes a fully enclosed air-cooled (TEFC) structure, offering excellent resistance to moisture, salt spray, and corrosion. It is particularly suitable for the long-term operation of ships’ blackwater, graywater, and vacuum drainage systems.
II. Operating Data
| Item | Data |
| ——————— | ——————————— |
| Rated Frequency fN | 50Hz // 60Hz |
| Rated Voltage UN | Y380/Δ220 // Y440/Δ255 V |
| Rated Current | 4.8/8.3 A // 4.75/8.2 A |
| Rated Speed nN | 2840 // 3470 rpm |
| Motor Power | 2.2kW // 2.5kW |
| Power Factor CosΦ | 0.83 // 0.86 CosΦ |
| Protection Rating | IP55 Totally Enclosed Air Cooled (TEFC) |
| Certification | CCS (China Classification Society) |
III. Structural Features and Process Description
* Housing Material: High-Strength Aluminum Alloy 316 stainless steel available (depending on the marine corrosion resistance level)
* Cooling method: Fully enclosed air-cooled TEFC (with forced air ducting)
* Protection rating: IP55, waterproof, dustproof, and salt spray-resistant
* Bearing system: SKF high-precision moisture-resistant rolling bearings with seals
* Terminal box: Marine-grade corrosion-resistant aluminum alloy terminal box with cable gland
This motor is precisely matched with the HZT029150701 rotor, HZT029150800 rotor housing, and HZT029150901 pressure chamber, ensuring excellent dynamic balance and low noise performance even at high speeds.
IV. Performance Features
✅ Dual-frequency, dual-voltage design (Global Compatibility)
Compatible with 50Hz and 60Hz power grid standards, meeting the electrical system requirements of ships in different countries.
✅ High Efficiency
Optimized electromagnetic structure and winding process achieve high output power and stable torque with low noise.
✅ Marine Protection
IP55 protection, suitable for humid, salt spray, and high-humidity marine environments.
✅ CCS Certified Reliability
Compliant with classification society standards, it can be directly installed on board ships without additional testing.
✅ Full Compatibility with HZT Pumps
Directly compatible with the HZT 15MBD vacuum sewage pump, no interface modification required.
V. Applications
* 🚢 Marine Vacuum Sewage Systems
* 💧 Black & Grey Water Systems
* ⚙️ Engine Room Sanitation Units
* 🧰 Vacuum Pump Spare Parts & Service
VI. Assistance technique et fourniture
HZT fournit un équipement complet, une conception de système et des services accessoires :
* Solutions complètes pour les pompes à vide marines et les stations de pompage sous vide des eaux usées
* Système OEM et soutien aux chantiers navals
* Approvisionnement rapide en pièces détachées et services de réparation
📧 Courriel de l'assistance technique : SJDT1199@gmail.com
🌐 Site web officiel : www.vacuumtoiletparts.com
1. HZT029151001 - Siège de soupape à clapet
2. HZT037302200 - Disque de soupape à clapet
3. HZT029151003 - Plaque de pression
4. HZT029150310 - Couvercle de la chambre d'aspiration
5. HZT037219210 - Joint torique
6. HZT029150320 - Chambre d'aspiration
7. HZT020202900 - Bouchon d'étanchéité à six pans creux
8. HZT029151900 - Contre-écrou
9. HZT029150400 - Lame rotative
10. HZT029150500 - Lame fixe
11. HZT029152401 - Boulon hexagonal demi-fileté avec rondelle élastique (M10x170)
12. HZT029150601 - Bride d'extrémité
13. HZT029150701 - Rotor (Impeller)
14. HZT029150800 - Boîtier de rotor
15. HZT029151800 - Entretoise
16. HZT038201500 - Joint d'arbre
17. HZT034507420 - Collier de serrage
18. HZT034507500 - Tuyau
19. HZT029150391 - Bride d'étanchéité d'arbre
20. HZT029150901 - Chambre de pression (chambre de décharge)
21. HZT029150310-02 - Couvercle d'aspiration (feuille de métal)
22. HZT029150450 - Assemblage de lames
23. HZT/- - Moteur - 2,2 kW - Moteur marin
24. HZT029015001 – 15 MBD Vacuum Pump
25. HZT023280061 - Siège de soupape à clapet
26. HZT037302100 - Disque de soupape à clapet
27. HZT023280091 - Plaque de pression
28. HZT023280050 - Couvercle de la chambre d'aspiration
29. HZT037219260 - Joint torique
30. HZT023280070 - Fixation de bride
31. HZT023280080 - Bride
32. HZT023280040 - Chambre d'aspiration
33. HZT020202900 - Bouchon
34. HZT020203100 - Lame rotative
35. HZT020203100 - Lame fixe
36. HZT021201000 – Tool holder
37. HZT036202010 - Boulon hexagonal demi-fileté (avec rondelle élastique) M12x220
38. HZT023200210 - Plaque d'extrémité de la chambre d'aspiration
39. HZT023219000 – Rotor housing
40. HZT021265401 – Rotor (impeller)
41. HZT021217000 - Bouchon RG 3/8
42. HZT023219000 - Chambre de pression (chambre de décharge)
43. HZT023260400 – Spacer sleeve
44. HZT038218900 - Joint d'arbre
45. HZT023280030 - Bride d'étanchéité d'arbre
46. HZT023280050-02 - Couvercle de la chambre d'aspiration (plaque métallique)
47. HZT/- - Moteur - 3,0 kW - Moteur marin
48. HZT023280010 - Pompe à vide 25 MBA
