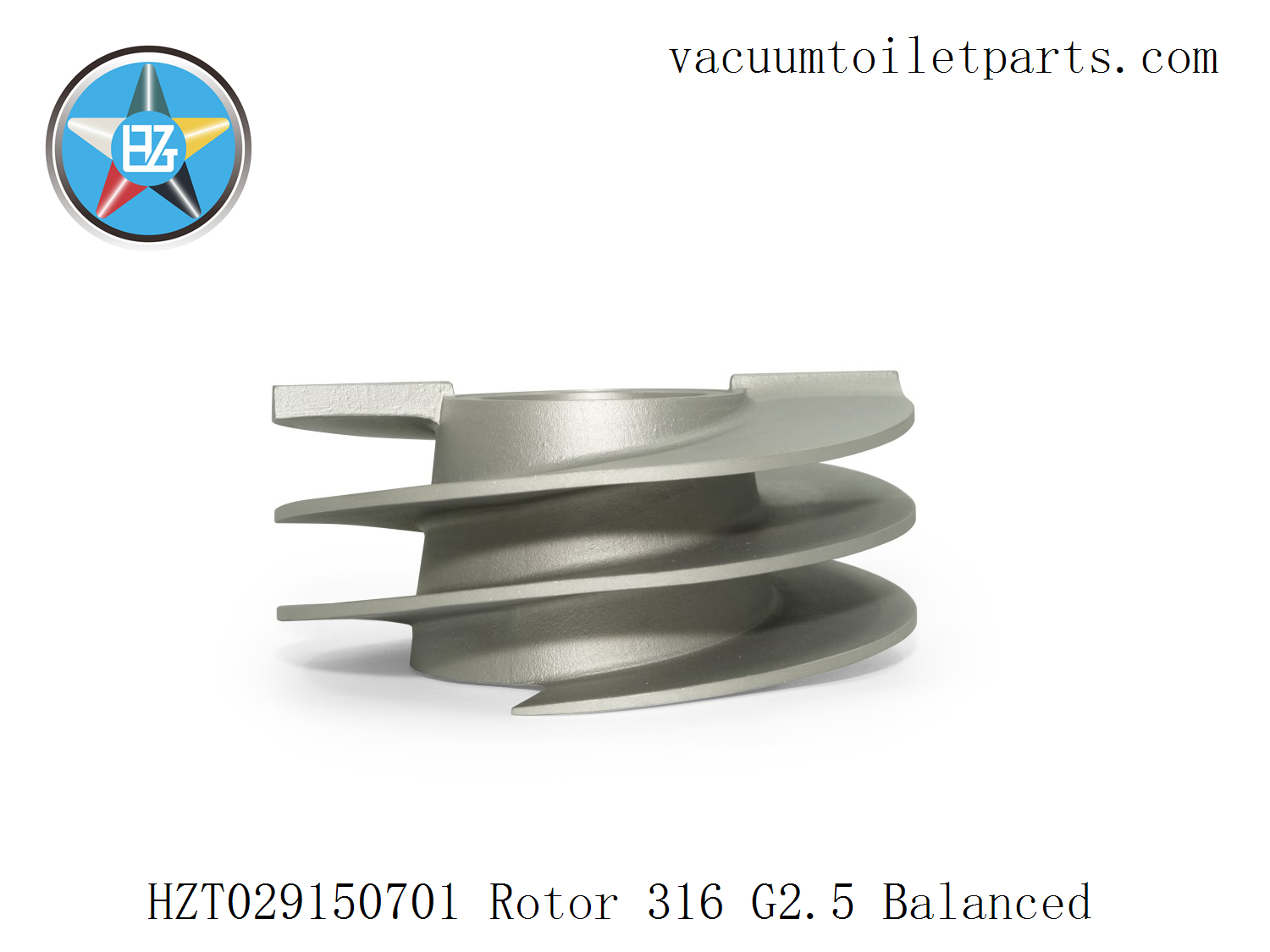

The HZT029150701 rotor is the core drive component of the HZT 15MBD marine vacuum sewage pump system.
It determines the vacuum limit, gas-liquid separation stability, and operating noise level of the entire system, and is a key foundation for system performance.
I. Structure and Design Logic

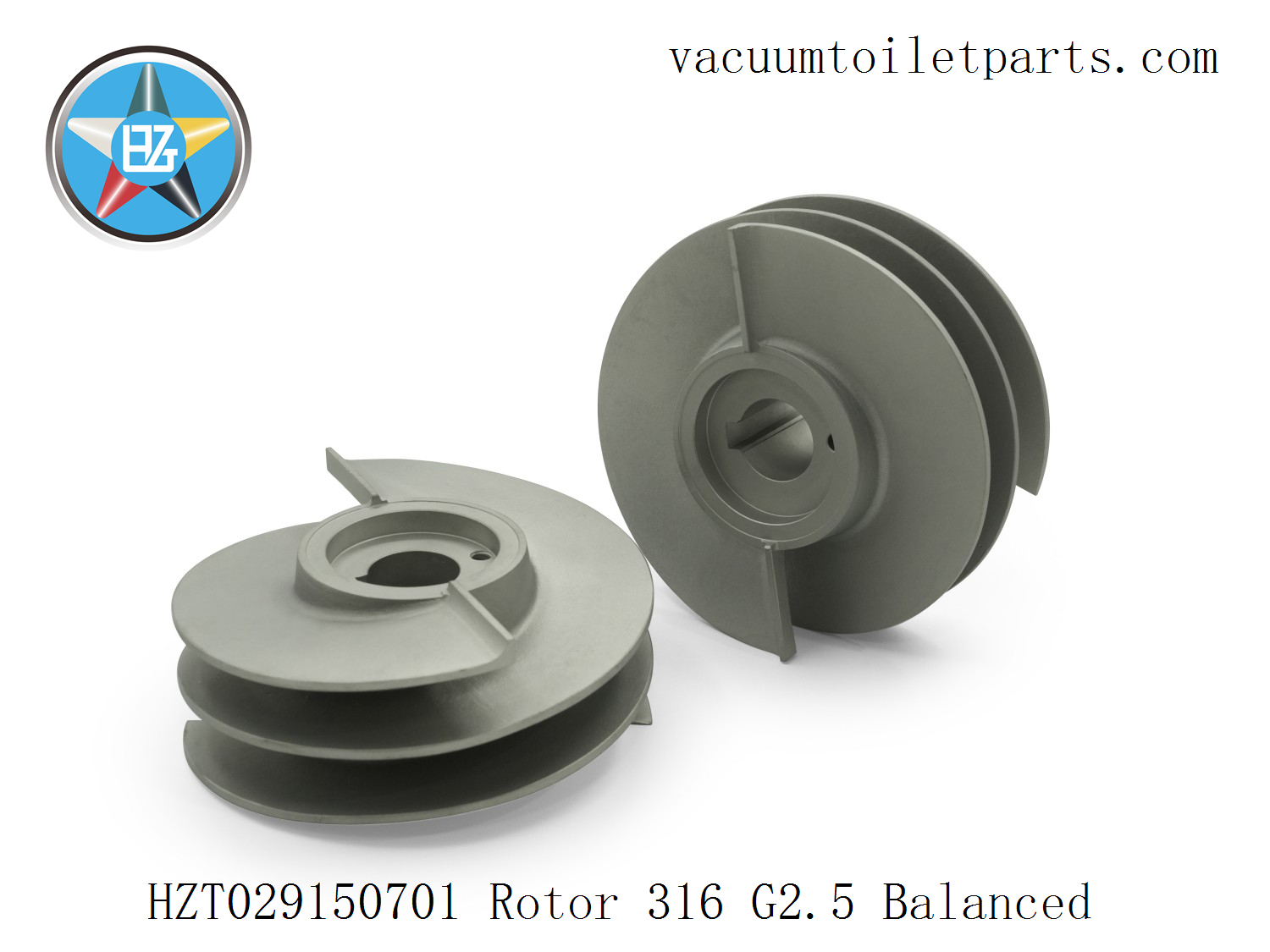

* Single Helical Rotor:
Adopting a right-hand helical rotor design, the rotor generates vacuum suction through the suction and push action of the rotor blades during fully submerged operation.
* Optimized Fluid Guide Design:
Blade angles and flow channel curvatures are optimized through fluid simulation to ensure smooth flow of wastewater, reduce turbulence and cavitation, and improve the system’s ultimate vacuum value and efficiency.
* Installation:
Connected to the motor shaft via a spacer sleeve (HZT029151800), the blade assembly (HZT029150450) is mounted in front, and the rear portion cooperates with the pressure chamber (HZT029150901) to form a vacuum flow channel.
# 2. Manufacturing Process and Dynamic Balancing Control
* Medium-Temperature Wax Precision Casting (IPC):
Ensures uniform blade thickness and precise flow channel formation, providing a geometric foundation for subsequent dynamic balancing.
* CNC Precision Machining:
Blades and center holes are machined using multi-axis turning and milling to ensure coaxiality and static and dynamic clearances.

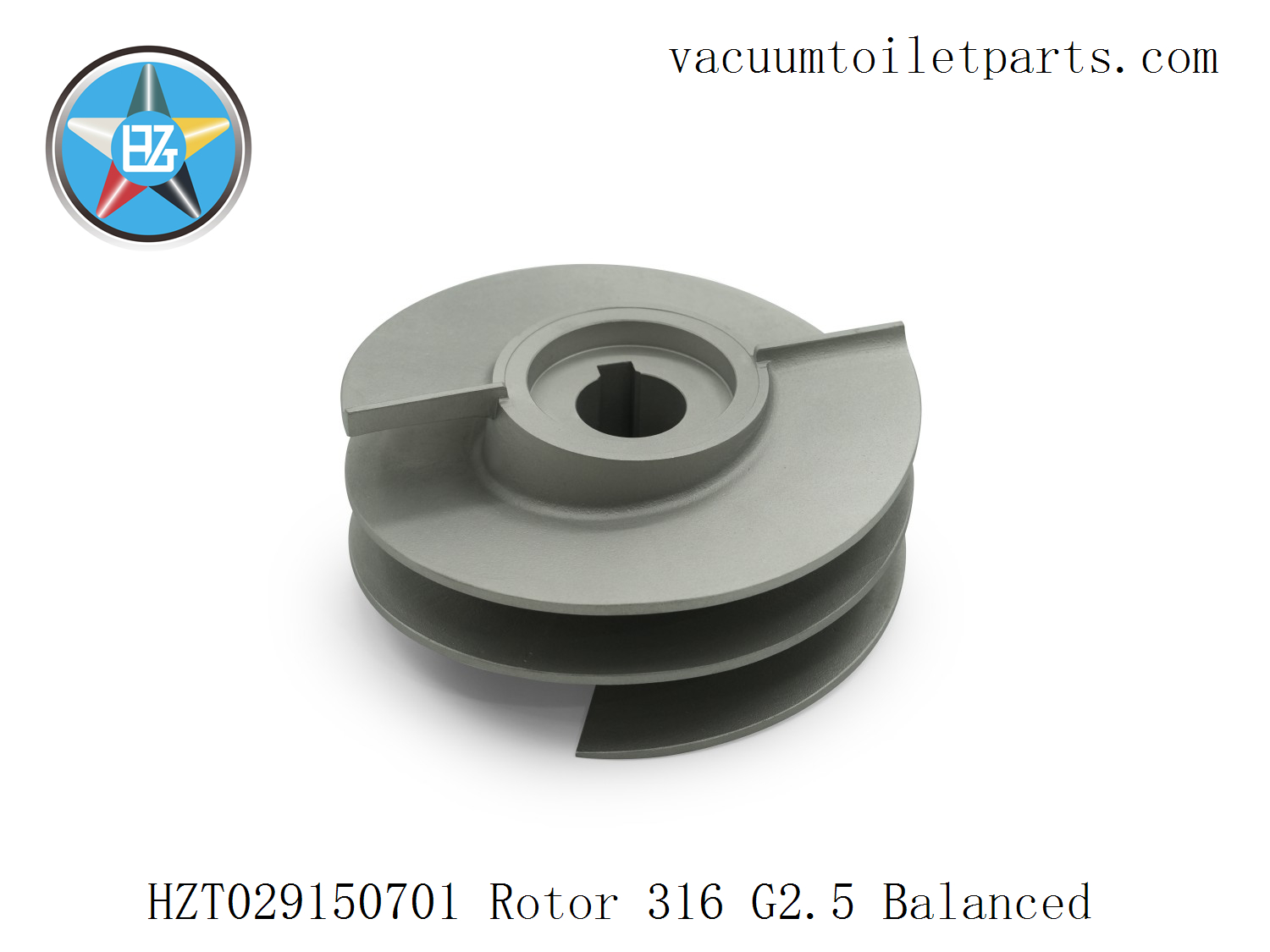

* Single-Unit Dynamic Balancing (G2.5) (ISO 1940 Standard):
Each HZT029150701 rotor is individually balanced to G2.5 and numbered to ensure low-vibration operation.
* Sandblasting & Electropolishing:
The surface is clean and smooth, preventing the adhesion of fibers and particles in wastewater, effectively reducing drag and scaling.
III. Performance and System Functions
The HZT029150701 rotor performs two functions during vacuum pump operation:
1. Creating Vacuum and Suction:
The spiral motion of the blades creates a negative pressure area within the liquid, allowing the mixed wastewater and gas to be drawn in.
2. Maintaining a Stable Discharge Flow:
The fluid is pushed into the pressure chamber (HZT029150901), where the impeller rotates to maintain a stable flow rate and pressure, preventing air locks.
3. Serving as a Cutter Breaking System:
The front-mounted blade assembly (HZT029150450) crushes impurities before the rotor draws in fluid, ensuring smooth, unobstructed fluid flow.
4. Maintaining System Balance and Quiet Operation:
Precise dynamic balancing ensures low vibration and noise, extending the life of bearings and seals.
IV. Materials and Corrosion Resistance
* 316 stainless steel, highly resistant to chloride ion corrosion;
* Surface electrolytic passivation layer improves corrosion resistance and finish;
* Suitable for use in environments with seawater, domestic sewage, and mild chemical media;
* Ensures long-term stable operation in high humidity, high salt spray, and high vibration conditions.
V. Industry Applications
HZT029150701 is suitable for:
* 🚢 Marine Sewage & Blackwater Vacuum Systems for Ships and Offshore Platforms
* ⚙️ Systèmes de toilettes sous vide
* 🧰 Marine Sanitation & Liquid Transport Systems
* 🌍 Port & Offshore Wastewater Units
VI. Assistance technique et fourniture
HZT fournit un équipement complet, une conception de système et des services accessoires :
* Solutions complètes pour les pompes à vide marines et les stations de pompage sous vide des eaux usées
* Système OEM et soutien aux chantiers navals
* Approvisionnement rapide en pièces détachées et services de réparation
📧 Courriel de l'assistance technique : SJDT1199@gmail.com
🌐 Site web officiel : www.vacuumtoiletparts.com
1. HZT029151001 - Base de la valve à clapet
2. HZT037302200 - Disque de soupape à clapet
3. HZT029151003 - Plaque de pression
4. HZT029150310 - Couvercle de la chambre d'aspiration
5. HZT037219210 - Joint torique
6. HZT029150320 - Chambre d'aspiration
7. HZT020202900 - Bouchon d'étanchéité à six pans creux
8. HZT029151900 - Contre-écrou
9. HZT029150400 - Lame rotative
10. HZT029150500 - Lame fixe
11. HZT029152401 - Boulon hexagonal demi-fileté avec rondelle élastique, M10x170 mm
12. HZT029150601 - Bride d'extrémité
13. HZT029150701 - Rotor (roue)
14. HZT029150800 - Boîtier de rotor
15. HZT029151800 - Douille d'écartement
16. HZT038201500 - Joint d'arbre
17. HZT034507420 - Collier de serrage
18. HZT034507500 - Tuyau
19. HZT029150391 - Bride d'extrémité de joint d'arbre
20. HZT029150901 - Chambre de pression (chambre de décharge)
21. HZT029150310-02 - Couvercle d'aspiration (plaque métallique)
22. HZT029150450 - Assemblage de lames
23. HZT/- - Moteur - 2.2KW - Moteur marin
24. HZT029015001 - Pompe à vide 15MBD
25. HZT023280061 - Siège de soupape à clapet
26. HZT037302100 - Disque de soupape à clapet
27. HZT023280091 - Plaque de pression
28. HZT023280050 - Couvercle de la chambre d'aspiration
29. HZT037219260 - Joint torique
30. HZT023280070 - Fixation de bride
31. HZT023280080 - Bride
32. HZT023280040 - Chambre d'aspiration
33. HZT020202900 - Bouchon
34. HZT020203100 - Lame rotative
35. HZT020203100 - Lame fixe
36. HZT021201000 - Porte-lame
37. HZT036202010 - Boulon hexagonal à demi-filet (avec rondelle élastique) M12x220
38. HZT023200210 - Plaque d'extrémité de la chambre d'aspiration
39. HZT023219000 - Boîtier de rotor
40. HZT021265401 - Rotor (Impeller)
41. HZT021217000 - Bouchon RG 3/8
42. HZT023219000 - Chambre de pression (chambre d'évacuation de l'eau)
43. HZT023260400 - Douille d'écartement
44. HZT038218900 - Joint d'arbre
45. HZT023280030 - Bride d'étanchéité d'arbre
46. HZT023280050-02 - Couvercle de la chambre d'aspiration (plaque métallique)
47. HZT/- - Moteur - 3.0kW - Moteur marin
48. HZT023280010 - Pompe à vide 25MBA
