I. Product Positioning (Model + Function + Assembly Relationship)

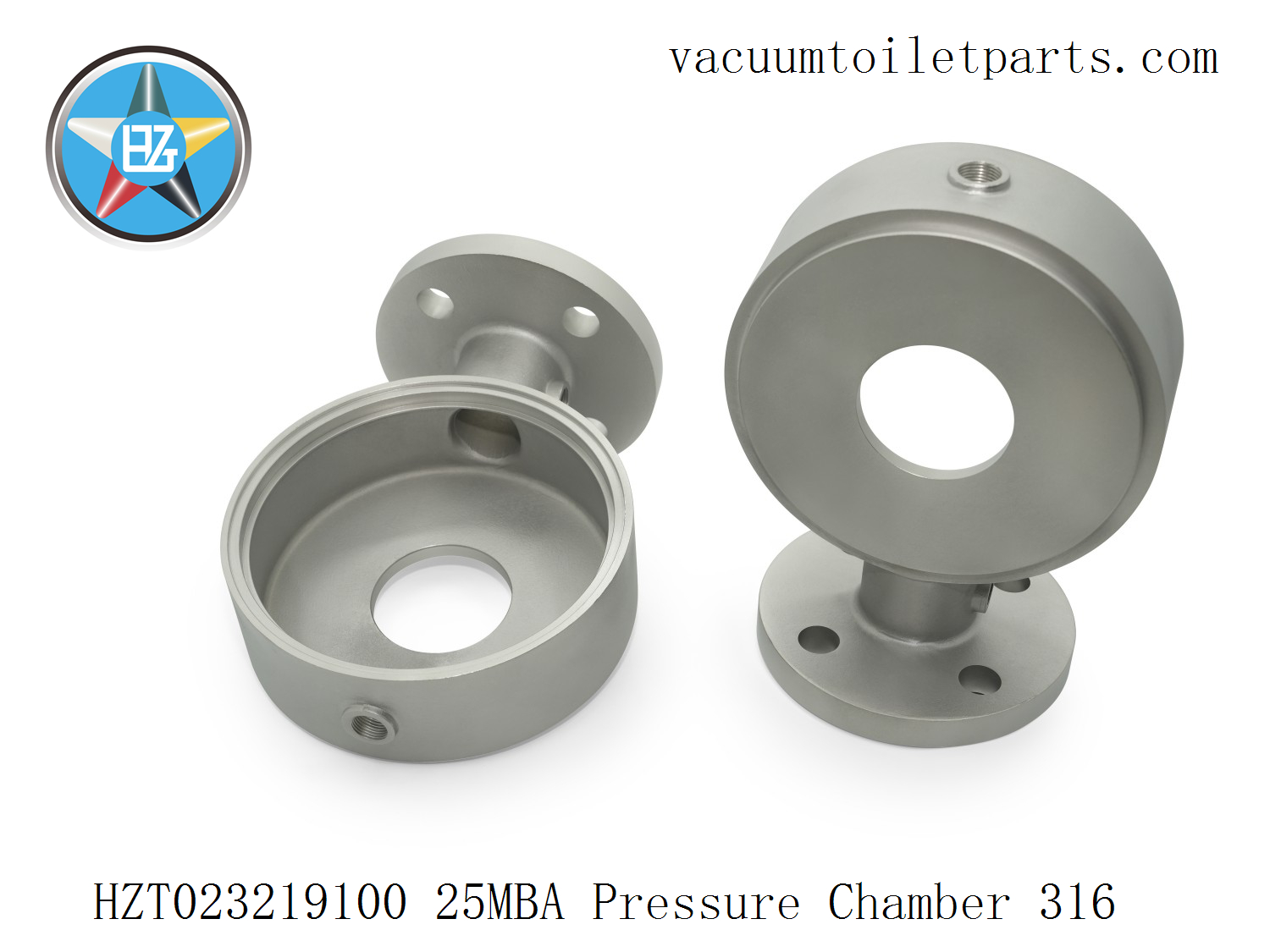

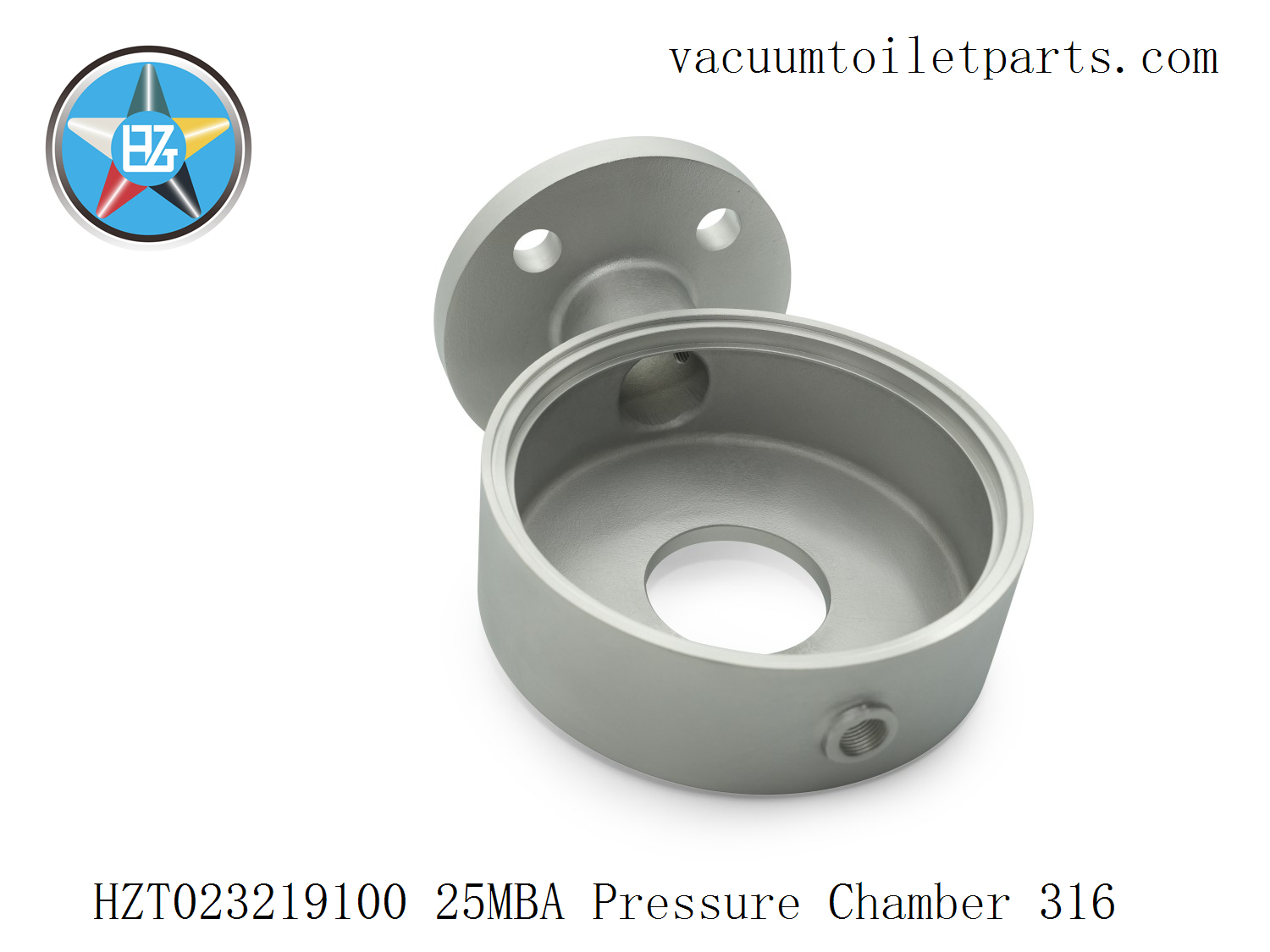

*The HZT023219100 pressure chamber (discharge chamber) is the primary discharge chamber component of the HZT25MBA marine vacuum discharge pump. Located between the rotor assembly (HZT021265401) and the motor cover, it collects the gas-liquid mixture compressed by the impeller and discharges it at high pressure.
It works with the following core components to form a complete discharge system:
* Front connection to HZT023219000 (rotor housing);
* Internally mounted with HZT021265401 (rotor) and HZT038281900 (shaft seal);
* Back connection to HZT023280010 (motor cover);
* The internal chamber and discharge port connect to the system main pipeline, completing the vacuum pump’s discharge function.
II. Materials and Manufacturing Process
* Material: 316 stainless steel, precision-cast using a medium-temperature wax process, offers excellent corrosion resistance and structural strength.
* Internal Structure: The inner cavity features a curved transition surface to reduce fluid turbulence and energy loss.
* Machining: CNC machining of key surfaces ensures the precision of flanges and seal grooves.
* Surface Treatment: Sandblasting and electrolytic passivation protect the exterior from corrosion by seawater, acids, alkalis, and wastewater.
III. Structure and Technical Features
1. High-Flow Discharge Structure

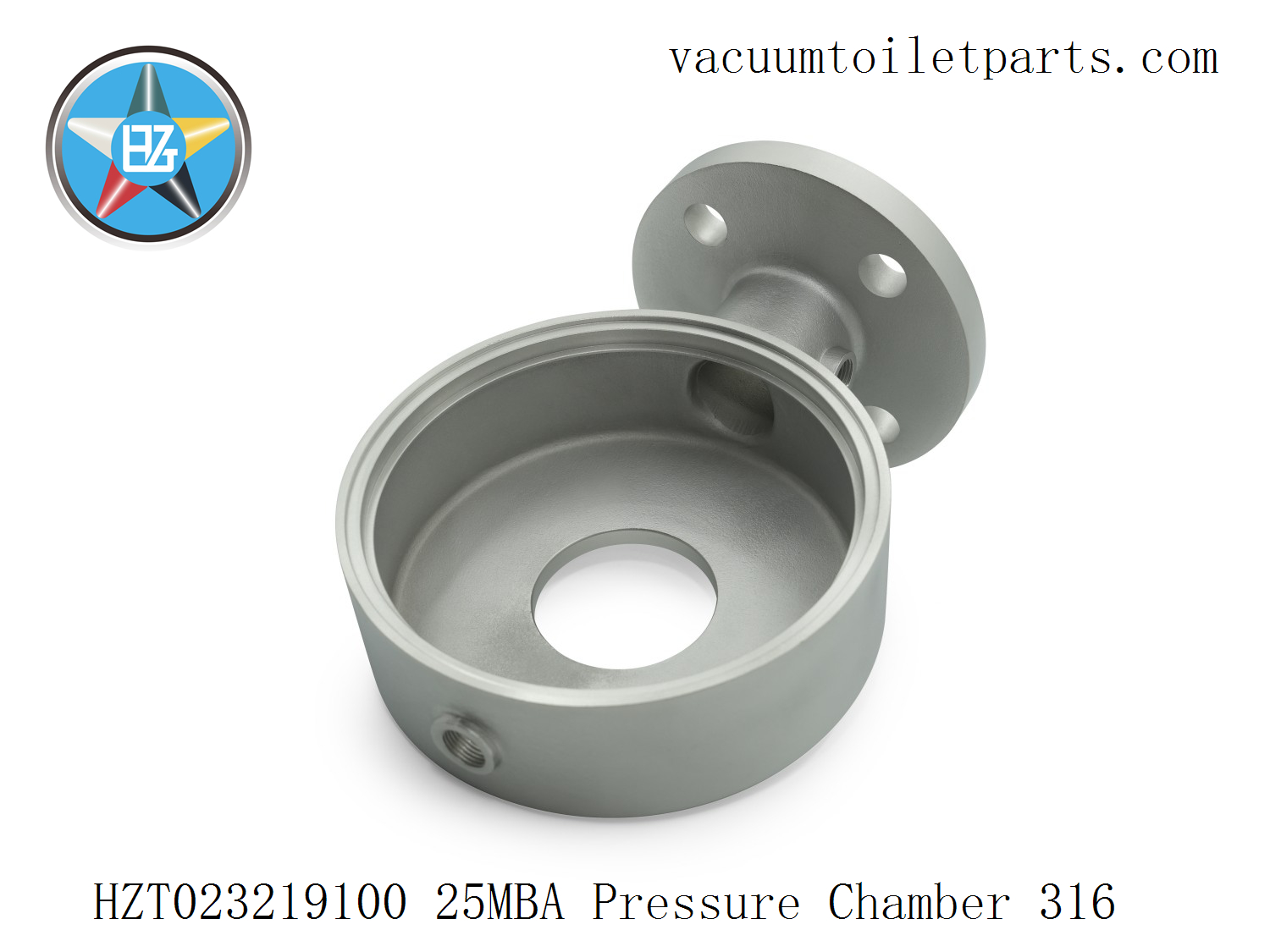

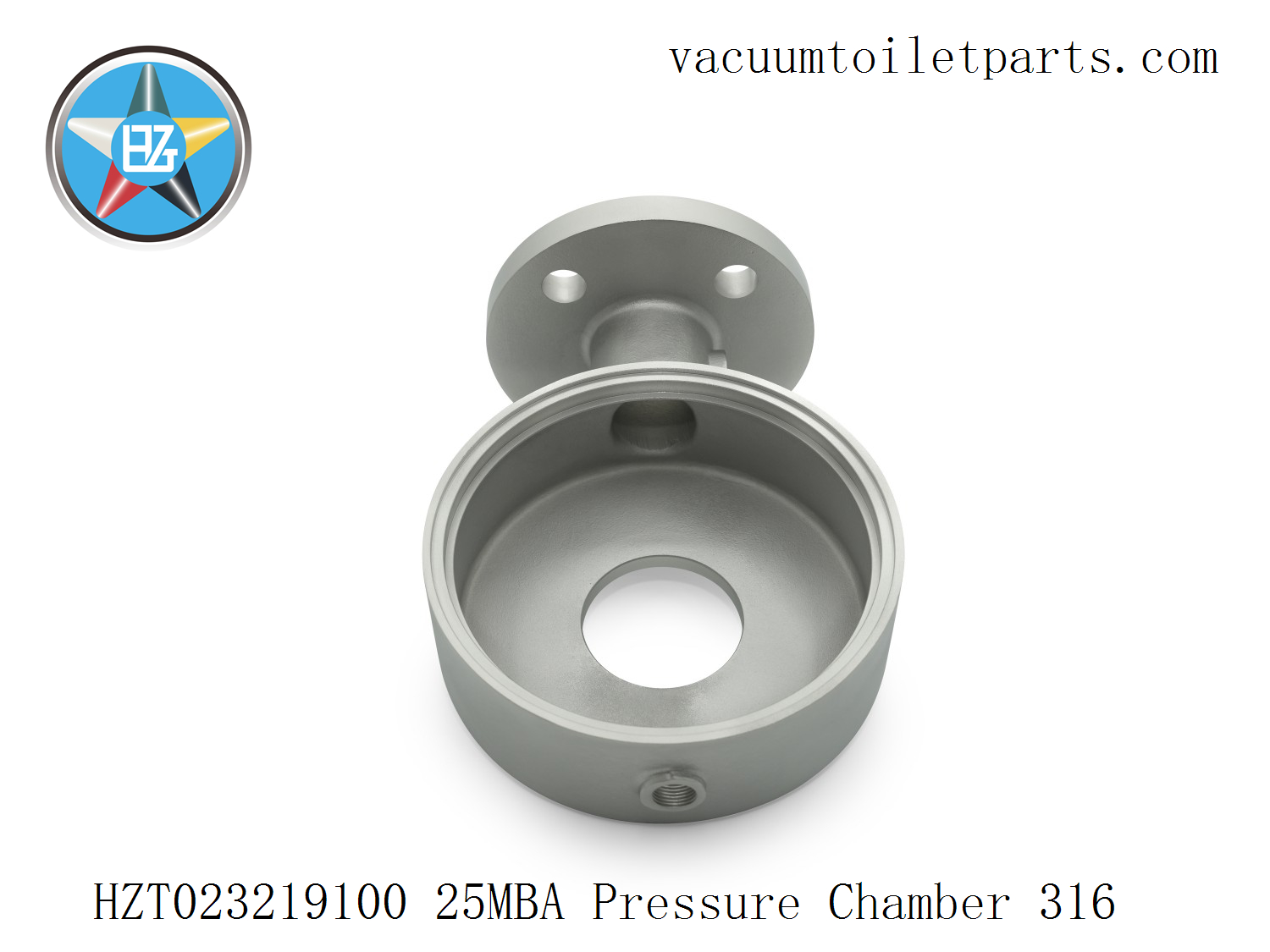

The outlet is designed with a DN32 diameter and a curved transition to ensure smooth discharge, suitable for high-volume vacuum systems.
2. High-Vacuum Seal End Structure
A built-in O-ring seal groove, compatible with the HZT038281900 shaft seal, ensures zero leakage under high vacuum conditions.
3. Pressure and Corrosion Resistance
The pressure chamber features a thick-walled structure to withstand the repeated stresses of high-pressure and vacuum environments.
4️⃣ Easy Assembly and Maintenance
Standardized flange holes allow for quick assembly and removal with the HZT023280010 motor cover, facilitating maintenance and replacement.
IV. Application Areas (Keyword Diversion)
* Marine & Yacht Vacuum Sewage Systems
* Offshore & Rig Wastewater Vacuum Systems
* Harbor & Port Vacuum Stations
* Land-Based Vacuum Toilet Systems
* Mobile Camps and Containerized Vacuum Sewage Units
V. Technical Support and Supply
HZT provides complete equipment, system design, and accessory services:
* Comprehensive solutions for marine vacuum pumps and wastewater vacuum pumping stations
* OEM system and shipyard support
* Fast parts supply and repair services
📧 Technical Support Email: SJDT1199@gmail.com
🌐 Official Website: www.vacuumtoiletparts.com
1. HZT029151001 – Flap valve base
2. HZT037302200 – Flap valve disc
3. HZT029151003 – Pressure plate
4. HZT029150310 – Suction chamber cover
5. HZT037219210 – O-ring
6. HZT029150320 – Suction chamber
7. HZT020202900 – Hexagon socket sealing plug
8. HZT029151900 – Lock nut
9. HZT029150400 – Rotating blade
10. HZT029150500 – Fixed blade
11. HZT029152401 – Half-threaded hexagon bolt (M10x170) with spring washer
12. HZT029150601 – End flange
13. HZT029150701 – Rotor (Impeller)
14. HZT029150800 – Rotor Housing
15. HZT029151800 – Spacer
16. HZT038201500 – Shaft Seal
17. HZT034507420 – Hose Clamp
18. HZT034507500 – Hose
19. HZT029150391 – Shaft Seal Flange
20. HZT029150901 – Pressure Chamber (Discharge Chamber)
21. HZT029150310-02 – Suction Cover (Metal Sheet)
22. HZT029150450 – Blade Assembly
23. HZT/- – Motor – 2.2 kW – Marine Motor
24. HZT029015001 – 15MBD Vacuum Pump
25. HZT023280061 – Flap Valve Seat
26. HZT037302100 – Flap Valve Disc
27. HZT023280091 – Pressure Plate
28. HZT023280050 – Suction Chamber Cover
29. HZT037219260 – O-Ring
30. HZT023280070 – Flange Fastener
31. HZT023280080 – Flange
32. HZT023280040 – Suction Chamber
33. HZT020202900 – Plug
34. HZT020203100 – Rotating Blade
35. HZT020203100 – Fixed Blade
36. HZT021201000 – Blade Holder
37. HZT036202010 – Half-threaded Hexagon Bolt (with Spring Washer) M12x220
38. HZT023200210 – Suction Chamber End Plate
39. HZT023219000 – Rotor Housing
40. HZT021265401 – Rotor (Impeller)
41. HZT021217000 – RG 3/8” Plug
42. HZT023219000 – Pressure Chamber (Discharge Chamber)
43. HZT023260400 – Spacer Sleeve
44. HZT038218900 – Shaft Seal
45. HZT023280030 – Shaft Seal Flange
46. HZT023280050-02 – Suction Chamber Cover (Metal Plate)
47. HZT/- – Motor – 3.0kW – Marine Motor
48. HZT023280010 – 25MBA Vacuum Pump
