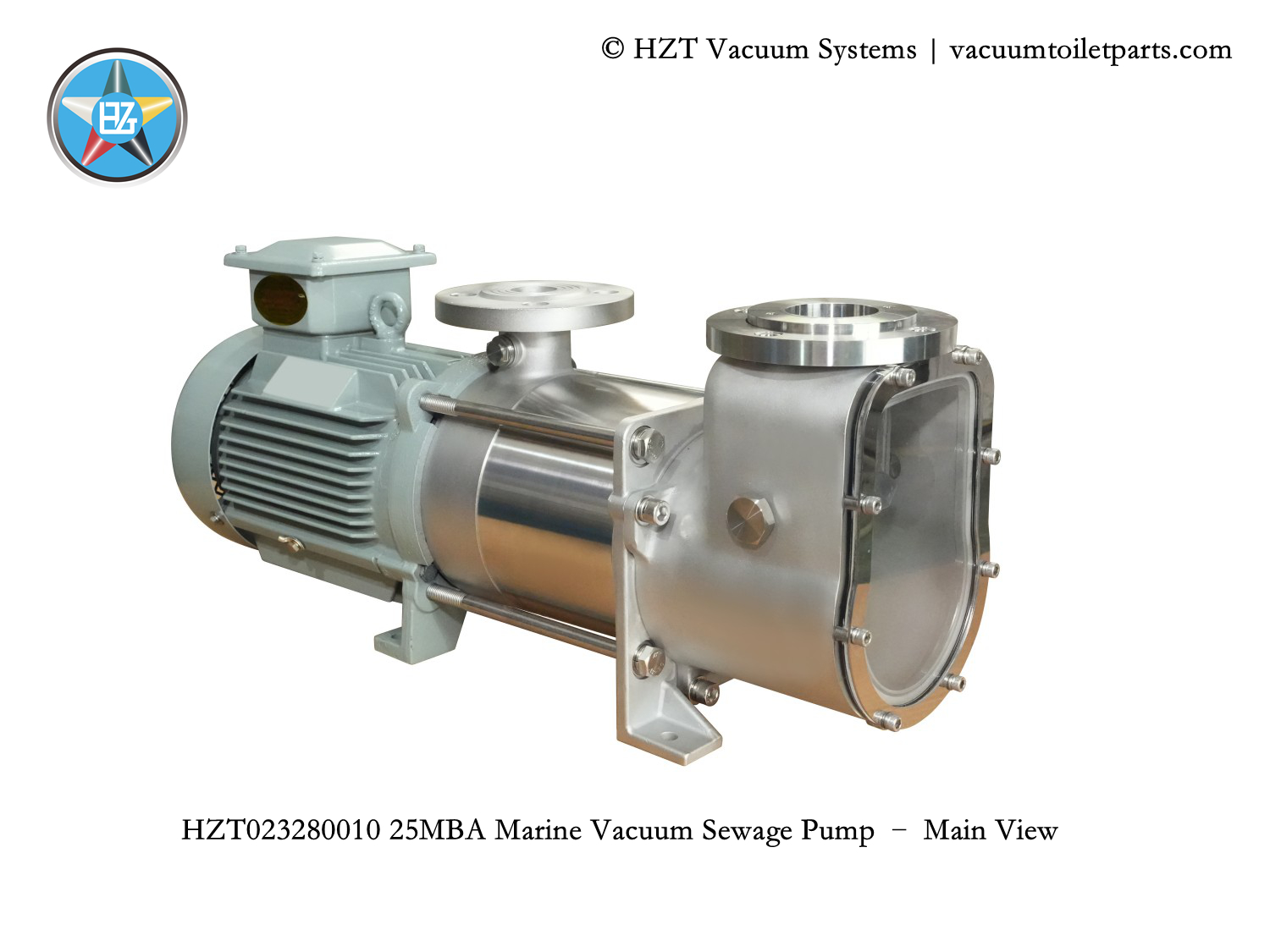

HZT023280010 25MBA Marine Vacuum Sewage Pump | High Vacuum Sewage and Greywater Systems (Compatible with JETS Marine Toilet Sanitary Vacuum Systems)

I. Product Overview

The HZT023280010 25MBA marine vacuum sewage pump is a high-pressure vacuum pump developed by HZT Vacuum Systems for ship sewage and graywater discharge systems.
This pump consists of several core components, including the rotor impeller HZT021265401, suction chamber HZT023280040, pressure chamber HZT023219000, rotating blade HZT020203100, fixed blade HZT020203100, flap valve base HZT023280061, flap valve disc HZT037302100, suction chamber cover HZT023280050, shaft seal assembly HZT038218900, and other precision components.

The HZT 25MBA utilizes a 316 stainless steel monolithic structure and a vacuum chamber. Its high-efficiency impeller and blade assembly work in tandem, achieving efficient suction and discharge in marine vacuum toilets and sewage treatment systems.
This model is fully compatible with the JETS 25MBA/EVAC system in terms of interfaces, mounting holes, and vacuum piping standards, making it a direct replacement without additional modification, making it an ideal system upgrade or replacement solution.

II. Product Features

* High Vacuum Performance and High Flow Rate Design

Utilizing the HZT021265401 rotor and dual-chamber pressure structure, the 25MBA achieves stable vacuum suction and a discharge rate of 25 m³/h.

* Anti-clogging and Pulverizing System

The built-in HZT020203100 rotating and stationary blades, combined with the HZT021201000 blade holder, effectively crush solid impurities, preventing clogging and foreign matter obstruction.

* Modular Maintenance Design
The suction chamber (HZT023280040) and pressure chamber (HZT023219000) are secured with independent flanges, allowing for quick assembly and disassembly using HZT036202010 half-thread hexagonal bolts, improving maintenance efficiency by 40%.

* Highly Corrosion-Resistant Structure
The pump body, flanges, blade assembly, and suction chamber cover (HZT023280050) are all constructed of 316 stainless steel. The exterior surfaces undergo a marine-grade passivation treatment for corrosion resistance, ensuring long-term rust and leak-free operation.

* Fully Sealed Shaft Seal System
The HZT038218900 shaft seal assembly and HZT023280030 flange ensure a long-term seal under vacuum conditions, preventing air infiltration and loss of vacuum.

* High Compatibility, Direct Replacement
The pump is compatible with the JETS 25MBA series vacuum pumps, featuring identical nozzle dimensions, flange hole spacing, and connector standards, ensuring seamless interchangeability.

III. Technical Specifications

| Model | HZT023280010 – 25MBA
| Power | 3.0 kW
| Voltage | 380V / 440V (50Hz / 60Hz)
| Vacuum | –0.08 MPa high negative pressure design
| Flow Rate | 25 m³/h
| Noise Level | ≤65 dB
| Material | 316 stainless steel (pump body, impeller, flange)
| Seal | EPDM / NBR
| Compatibility | JETS / EVAC Vacuum Toilet Systems |
| Application | Marine sewage and graywater vacuum drainage systems

IV. Structure and Working Principle

The HZT023280010 vacuum pump is… The suction chamber (HZT023280040) creates negative pressure, drawing sewage and graywater from the vacuum toilet into the pump body.

Inside the chamber, the rotating blades (HZT020203100) and the fixed blades (HZT020203100) work together to crush impurities. Centrifugal force generated by the rotor (HZT021265401) transports the liquid to the pressure chamber (HZT023219000) and out of the system.

The vacuum pump consists of the following components, which work together:

* Suction Chamber HZT023280040
* Pressure Chamber HZT023219000
* Rotor HZT021265401
* Flap Valve Base HZT023280061
* Suction Chamber Cover HZT023280050
* Cutter Set HZT020203100 / HZT021201000
* Shaft Seal Assembly HZT038218900
* Marine Motor (3.0kW)

V. Applications

* Passenger ships, yachts, research vessels, cargo ships, oil tankers, offshore drilling platforms
* Vacuum toilet systems, sewage vacuum pumping stations, and graywater recovery units
* Integrated sewage and graywater discharge systems for ships
* Shipyard renovation and vacuum system upgrade projects
* JETS/EVAC system replacement and supporting projects

VI. Technical Support and Services

HZT Vacuum Systems offers a full range of 25MBA and 15MBD vacuum pumps, along with spare parts, repair parts, seals, and blade sets.

We support JETS and EVAC system replacements and OEM customizations; we can provide detailed assembly drawings, bill of materials (BOMs), dimensional drawings, and maintenance instructions.

📧 Technical Support Email: SJDT1199@gmail.com
🌐 Official Website: www.vacuumtoiletparts.com

1. HZT029151001 – Flap Valve Base
2. HZT037302200 – Flap Valve Disc
3. HZT029151003 – Pressure Plate
4. HZT029150310 – Suction Chamber Cover
5. HZT037219210 – O-Ring
6. HZT029150320 – Suction Chamber
7. HZT020202900 – Hexagon Socket Sealing Plug
8. HZT029151900 – Lock Nut
9. HZT029150400 – Rotating Knife
10. HZT029150500 – Stationary Knife
11. HZT029152401 – Half-Threaded Hexagon Bolt with Spring Washer M10x170
12. HZT029150601 – End Flange
13. HZT029150701 – Rotor (Impeller)
14. HZT029150800 – Rotor Housing
15. HZT029151800 – Spacer Sleeve
16. HZT038201500 – Shaft Seal
17. HZT034507420 – Hose Clip
18. HZT034507500 – Hose
19. HZT029150391 – Shaft Seal End Flange
20. HZT029150901 – Pressure Chamber (Water Outlet Chamber)
21. HZT029150310-02 – Suction Type Cover (Sheet Metal)
22. HZT029150450 – Knife Set
23. HZT/- – Motor – 2.2KW – Marine Motor
24. HZT029015001 – 15MBD Vacuum Pump
25. HZT023280061 – Flap Valve Base
26. HZT037302100 – Flap Valve Disc
27. HZT023280091 – Pressure Plate
28. HZT023280050 – Suction Chamber Cover
29. HZT037219260 – O-Ring
30. HZT023280070 – Flange Fasteners
31. HZT023280080 – Flange
32. HZT023280040 – Suction Chamber
33. HZT020202900 – Plug
34. HZT020203100 – Rotating Knife
35. HZT020203100 – Stationary Knife
36. HZT021201000 – Knife Holder
37. HZT036202010 – Half-Threaded Hexagon Bolt with Spring Washer M12X220
38. HZT023200210 – Suction Chamber End Plate
39. HZT023219000 – Rotor Housing
40. HZT021265401 – Rotor (Impeller)
41. HZT021217000 – Plug RG 3/8”
42. HZT023219000 – Pressure Chamber (Water Outlet Chamber)
43. HZT023260400 – Distance Sleeve
44. HZT038218900 – Shaft Seal
45. HZT023280030 – Flange for Shaft Sealing
46. HZT023280050-02 – Suction Chamber Cover (Sheet Metal)
47. HZT/- – Motor – 3.0KW – Marine Motor
48. HZT023280010 – 25MBA Vacuum Pump
